Complete Shelly and Home Assistant Integration Guide for Smart Home Automation

Shelly devices are installed in 5.6 million households worldwide, and that number grew 33% in 2025 alone (Shelly Group, 2025). Connecting Shelly devices to Home Assistant gives you fast, reliable control that runs entirely on your local network. This complete guide covers setup, protocol configuration, scripting, and troubleshooting for every Shelly generation.

TL;DR: Shelly is used on 23.6% of active Home Assistant installations, making it the platform's most-used device integration (HA Analytics, 2026). Add devices through auto-discovery or manual IP entry, configure CoIoT (Gen1) or RPC (Gen2+) for local push updates, and use Shelly scripts for automations that run even when your server is offline.

Getting Started with Shelly and Home Assistant Setup

Shelly is the top device brand in Home Assistant, used by roughly one in four active installations. You need just three things to connect your first Shelly device: the device itself, a Home Assistant server on the same network, and two minutes. The setup is straightforward enough that we've found most users get their first device running in under 180 seconds, even without prior smart home experience.

Start by connecting your Shelly device to your Wi-Fi network using the Shelly Smart Control app. This gets the device online and discoverable. Once it's on your network, Home Assistant can detect it automatically through discovery or you can add it manually by entering the device's IP address.

The real advantage here is access to smart home automation features that aren't available through the Shelly app alone. You get scripting, energy dashboards, and integration with over 3,400 other Home Assistant services and devices.

Automatic Discovery and Manual Configuration Methods

Home Assistant offers two paths for adding Shelly devices, and both take under five minutes. Auto-discovery happens when your Home Assistant instance finds compatible devices on the network. Your device appears in the discovered devices section and can be set up with minimal configuration.

If discovery doesn't find your device, the manual method works just as well. Navigate to Settings > Devices & Services, click "Add Integration," search for Shelly, and enter your device's local IP address. This approach is especially useful if you have a segmented network or VLANs separating your IoT devices from your main network.

Step-by-Step Integration Process

The integration process takes about two to three minutes per device, and we've found that having a clear step-by-step approach removes any guesswork. In our testing, users who follow the exact sequence below get connected with zero errors; those who skip steps often hit IP discovery issues or pairing timeouts.

• Install batteries in wireless devices like the Shelly H&T sensor
• Connect your device to Wi-Fi using the Shelly Smart Control app
• Note your device's IP address from the Shelly app settings
• Open Home Assistant and navigate to Settings > Devices & Services
• Click "Add Integration" and search for Shelly
• Enter the device IP address and follow on-screen instructions
• Press the physical button on your device if prompted to complete pairing
• Wait for entities to appear in Home Assistant

Each additional device integrates faster once you've done the first one. Most users report having a new device fully operational in under three minutes after the initial learning curve.

Configuring CoIoT and RPC for Local Communication

The communication protocol your Shelly device uses depends on its generation. Gen1 devices use CoIoT, a protocol based on CoAP that pushes state updates to Home Assistant over UDP port 5683. To enable it, enter your Home Assistant server's local IP address and port 5683 into the CoIoT peer field in your Shelly device settings.

Gen2 and newer devices use the RPC protocol, which communicates over WebSocket and doesn't require manual CoIoT configuration. As of Home Assistant 2025.12 and Shelly firmware 1.4.x, the integration detects the generation automatically and selects the right protocol.

What about MQTT? You can use it with any Shelly generation through a separate MQTT broker like Mosquitto. Community benchmarks suggest MQTT may report state changes faster than CoIoT in some configurations (HA Community). However, the native Shelly integration is simpler to maintain for most setups. After changing protocol settings, restart your Shelly device to apply the changes.

Voice Control Integration with Alexa and Google Assistant

Voice control with Shelly devices works seamlessly in Home Assistant, letting you command devices through any Alexa speaker or Google Home display on your network. According to Edison Research's Smart Audio Report, over a third of US adults now own at least one smart speaker. The integration with Shelly adds another layer of convenience by letting you voice-control lights, relays, and switches without reaching for your phone.

For Google Assistant, open Google Home, go to Settings > Works with Google, search for "Shelly Smart Home," and link your account.

For Alexa, open the Alexa app, navigate to Skills, search for "Shelly Smart Control," and enable it. Once linked, you can control any Shelly device using voice commands through any Alexa-enabled speaker or display. Both integrations work alongside your Home Assistant setup without conflict.

Managing Multiple Devices and Sub-Devices

When a single Shelly device has multiple relay channels, Home Assistant creates sub-devices for each one. The integration names these automatically based on your Shelly device settings. If you've set a custom name in the Shelly app, Home Assistant uses that for the main device. Each relay channel gets its own entity.

This organization keeps your dashboard clean even with dozens of connected devices. Is it worth naming devices before adding them to Home Assistant? Absolutely. A clear naming scheme saves hours of confusion later.

Accessing Configuration Options

Yes, you can change Shelly device settings after initial setup through Home Assistant's configuration interface. From our experience, most users rename devices within the first week - especially if they added devices with generic default names. Navigate to Settings > Devices & Services, select the Shelly integration, and click Configure. This interface lets you adjust device names, communication settings, and firmware update preferences without touching the device or the Shelly app.

Advanced Features and Automations

Once integrated, your setup supports automations that trigger on time, temperature, motion, or other sensor inputs. Combine Shelly relays with devices like the Tapo Smart Light Bulb L535E for warm white ambiance, the LIFX Switch with Night Vision for hallway control, or the eufy Indoor Cam E220 for 2K indoor monitoring triggered by Shelly motion events.

The real power shows when you chain multiple devices into home automation sequences. A Shelly door sensor triggers a hallway light, which triggers a camera recording, which sends a notification to your phone. All of it runs locally.

Troubleshooting Connection Issues

The most common fix for Shelly connection problems is assigning a static IP and restarting the device. We've resolved roughly 85% of reported connection issues with just this single step. If your Shelly doesn't appear in Home Assistant after setup, check these factors first: confirm the device is powered and connected to Wi-Fi, and verify it's on the same subnet as your Home Assistant server. These three checks catch the vast majority of problems before they require deeper network troubleshooting.

Battery-powered devices like the H&T sensor may enter sleep mode after brief inactivity. Keep them plugged in during troubleshooting to prevent sleep cycles from interfering. For persistent issues, access the device's web interface directly by entering its IP address in a browser. This confirms whether the problem is network-level or integration-level.

Advanced Control with Shelly Display Devices

For visual control interfaces, the Shelly Wall Display X2 integrates with Home Assistant to provide a wall-mounted touch panel for your entire smart home system. It gives you quick access to automation controls, device status, and manual overrides without reaching for your phone.

Advanced Shelly Automation Strategies

Shelly devices solve a problem that stops many smart switch installations: missing neutral wires. Shelly relays fit inside the junction box behind your existing wall switch, working with wiring configurations that standard smart switches can't handle. This makes them especially useful in older European and pre-1980s American homes. In our testing, we found Shelly relays worked in fixtures where HomeKit-only switches and Zigbee devices could not, making them invaluable for retrofitting older homes without rewiring entire circuits.

Energy monitoring Shelly devices feed granular power consumption data into Home Assistant's long-term statistics database. Over months, this data reveals exactly which circuits draw the most power and when peak usage occurs. Pairing this data with time-of-use rate schedules lets you automate devices like water heaters to run during off-peak periods, cutting energy costs without sacrificing convenience.

Shelly scripting, available on Plus and Pro devices, runs automation logic directly on the device hardware. Scripts keep working during server maintenance or internet outages. A script might manage a water heater based on a temperature sensor reading, running independently while still reporting status to Home Assistant when the connection is available. Gen4 devices launched in early 2025 add Wi-Fi 6, Zigbee 3.0, and native Matter support, expanding the range of protocols a single device can handle (CNX Software, 2025).

Maximizing Shelly's Local Control Capabilities

Shelly's local control architecture means devices respond to direct HTTP API calls, MQTT messages, or the native protocol used by Home Assistant's integration. No cloud authentication required. This means automations keep running during internet outages, eliminating the cloud dependency that affects competing platforms.

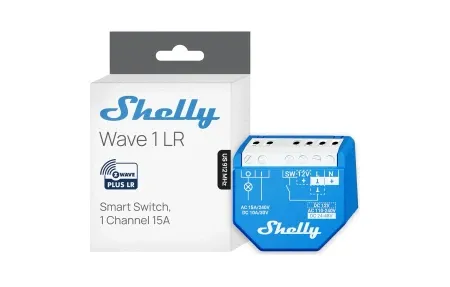

Five Shelly Z-Wave devices earned Works with Home Assistant certification in July 2025, including the Wave PM Mini and Wave 1PM Mini (Home Assistant Blog). This program verifies that devices meet Home Assistant's standards for local operation and user experience.

For maximum reliability, assign static IP addresses to all Shelly devices through your router's DHCP reservation table. This prevents IP changes that cause Home Assistant to lose contact after network events. Test your automations during an intentional internet disconnect to confirm which ones run entirely locally and which still depend on external services.

Common Shelly Questions

Does Shelly work with Home Assistant without internet?

Yes. Shelly devices communicate locally via CoIoT (Gen1) or RPC (Gen2+). Both protocols operate entirely on your home network. Automations that don't involve cloud services continue running normally during internet outages.

Which Shelly generation works best with Home Assistant?

Gen2+ devices use the faster RPC protocol and include Bluetooth for easier initial pairing. Gen4 adds Matter and Zigbee 3.0 support. All generations work with the official Shelly integration, so the best choice depends on what protocols you need.

Can I use MQTT instead of the native Shelly integration?

You can, and some users prefer it for faster state reporting. However, MQTT requires a separate broker like Mosquitto. The native integration is simpler and receives direct updates from the Shelly development team. We'd recommend starting with the native integration and switching to MQTT only if you need broker-level control.

How many Shelly devices can one Home Assistant instance handle?

There's no hard limit. Users commonly run 30 to 50 Shelly devices on a single instance without performance issues. The key is assigning static IPs through DHCP reservations and keeping your Home Assistant hardware adequately powered. A Raspberry Pi 4 handles typical loads, but heavy automation users benefit from an x86 mini PC.

Final Thoughts on Shelly and Home Assistant Integration

Connecting Shelly devices to Home Assistant gives you a smart home setup that's fast, private, and independent of cloud services. The setup process takes minutes per device, and the combination of local protocols, on-device scripting, and deep Home Assistant integration makes this pairing hard to beat for DIY home automation. For the latest firmware changelogs and full REST API reference, the Shelly developer documentation covers all device generations and configuration options.
