Shelly Dimmer Gen4: Multi-Protocol Smart Light Controller

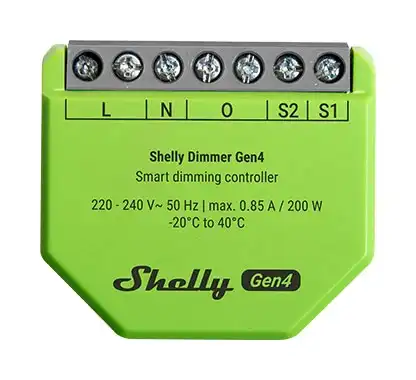

Can a dimmer this small carry Wi-Fi, Bluetooth, Zigbee and Matter? The Shelly Dimmer Gen4 lists all of them. It packs the radios into a 38.5 x 43.5 x 17.0 mm module (24.3 grams per Shelly) that hides behind an existing wall switch, and it works as a multi-protocol smart light controller for 220-240V mains. It can run without a neutral wire, which widens where you can fit it, with a catch for small loads (see below). Shelly's knowledge base names the model S4DM-0A101WWL.

Product Overview and Key Features

This module turns ordinary fixtures into dimmable, remotely controlled lights without a rip-and-replace job. Shelly's limits are dimmable LED up to 150 watts, incandescent and halogen up to 200 watts, and dimmable electronic transformers up to 200 watts. The maximum output is 200 W (0.85 A), and it dims with a trailing-edge method. The housing measures 38.5 x 43.5 x 17.0 millimeters, so it disappears behind a standard wall switch inside your smart home ecosystem with no structural rewiring.

The install flexibility is where it separates from the pack. Shelly's dimmer runs without a neutral wire, but without a neutral the minimum load is 20 watts unless you fit a bypass. Overvoltage, undervoltage and overpower protection need the neutral, according to Shelly's documentation. That design choice makes retrofitting an older home less invasive. A reviewer at smarthomecompared.com says the US model needs a neutral, which conflicts with the EU documentation, so check the model sold in your country before you buy.

Connectivity and Integration Capabilities

Three radios do different jobs. Wi-Fi handles remote control through Shelly's mobile app. Bluetooth 5.0 is used for setup and local access. Zigbee lets the module join a Zigbee network, and Shelly's page says it supports repeater mode. Shelly's knowledge base describes Matter as the default mode, with five presses of the button switching to Zigbee inclusion for 3 minutes. It doesn't say all radios run at once, so don't assume a Wi-Fi-plus-Zigbee setup works.

Shelly lists the dimmer as Matter compatible. That should connect it to Apple HomeKit, Amazon Alexa, and Google Home without a vendor-specific bridge, though we haven't tested it with each. Voice control then runs through the assistant, which adds some convenience to turning lights up and down.

Technical Specifications and Performance

Shelly's documentation lists a maximum output of 200 W (0.85 A) and an external protection device of 16 A, curve B or C. That 16 A is the breaker rating, not what the dimmer can pass, so don't plan a big lighting circuit around it. Power consumption is below 1.5 W, and it has two switch inputs.

Key technical characteristics include:

Key Points

• Wi-Fi 802.11ax, Bluetooth 5.0 and Zigbee radios, with Matter compatibility
• No neutral wire required (bypass needed for loads below 20W without a neutral)
• Dimmable LED up to 150W, incandescent and halogen up to 200W
• Remote control via the Shelly mobile app and voice assistants
• Compact form factor fits behind standard wall switches

Smart Home Use Cases and Applications

In a bedroom, the module can run a gradual morning sequence that raises brightness slowly to help you wake without a jolt. Living room installations lean on scene control, where a single command sets several lights to preset levels for movie night, hosting guests, or heads-down work at a desk.

Kitchens and dining areas get voice-adjusted lighting while your hands are covered in flour. Entryways can trigger automatically off a motion sensor the moment you walk in. Home offices benefit from custom dimming curves that cut eye strain as daylight shifts. Hallways and corridors can hold a soft night level so anyone up at 3 a.m. can navigate safely without flipping on a harsh overhead.

The Gen4 earns its keep in retrofits where major electrical renovation isn't on the table. It's still mains wiring behind a switch, so it's a job for someone qualified to do it.

Installation and Getting Started

Wiring comes first, and it needs respect. The module sits between your light switch and the fixture, following the printed diagram exactly. Terminals take 0.5-4 mm2 conductors stripped 5-6 mm, at a maximum 0.4 Nm torque. Once it's physically in, the Shelly app connects it to Wi-Fi and lets you name the dimmer and set parameters. Shelly's page lists only a printed user and safety guide as documentation.

Voice control takes one extra step: add the device to your chosen platform through its own app. Matter-enabled systems can often discover and add it automatically. From there you can build automation routines, scene configurations, and links to other smart home devices. The interface stays approachable for ongoing tweaks, even if you've never wired a dimmer in your life.

Is the Shelly Dimmer Gen4 Worth It?

Buy it if you're retrofitting a home that lacks neutral wires and you want to stay flexible about ecosystems. Matter plus Zigbee gives you options, and the lamp compatibility covers typical room lighting up to 150-200 W. It isn't for a big lighting circuit, because the output tops out at 200 W.

Skip it if your circuits already have neutrals and you live entirely inside one platform. In that case a cheaper single-protocol dimmer does the same day-to-day job for less money. Here's the honest tradeoff: without a neutral, loads under 20 watts need a bypass, which is an extra part to source and one more connection to wire, and that trips up first-timers. Several modern LED lamps are under 20 watts, so check your lamp wattage first.

What Comes in the Box

Shelly's page lists a printed user and safety guide; it doesn't list other contents, so check the box listing at your retailer. It's rated for indoor use, 30-70% RH and -20°C to 40°C, so keep it inside a dry back-box. No batteries are needed since it draws from mains power. This page is based on Shelly's published specifications, not hands-on testing.
