Narwal Freo Z Ultra: 12,000Pa Suction With EdgeSwing Mopping

The Narwal Freo Z Ultra is a robot vacuum and mop combo that delivers 12,000Pa suction alongside edge-to-edge mopping through its EdgeSwing arm extension. In our review, we found the dual rotating mops with 8N downward force scrub hard floors effectively while the AI DirtSense 2.0 system adjusts cleaning intensity based on detected dirt levels. The self-cleaning dock handles mop washing, drying, dust emptying, and detergent dispensing for up to 120 days between maintenance.

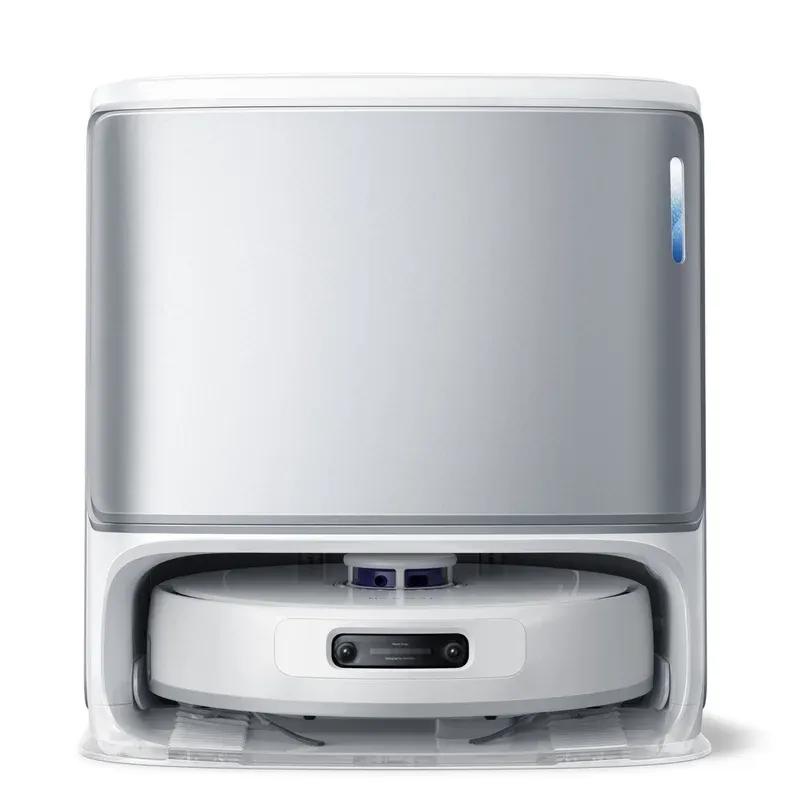

What sets the Freo Z Ultra apart from competitors is the navigation hardware. Dual 1600x1200 HD cameras combined with LiDAR 4.0 provide 360-degree mapping powered by Xbox-grade processing chips running 4 trillion calculations per second. This enables recognition of over 120 obstacle types, including pet waste, cables, shoes, and small toys.

Product Overview

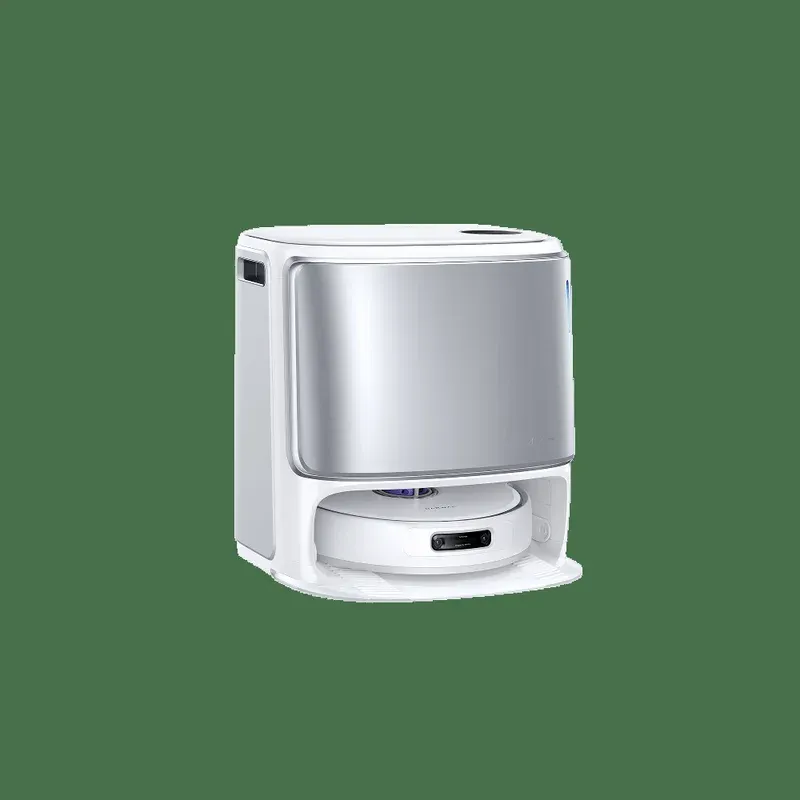

The Narwal Freo Z Ultra measures 355 x 350 x 109.6mm and weighs 4.5kg. Its headline feature is the EdgeSwing mop arm, which physically extends beyond the robot body to clean along walls and into corners where standard circular robots leave gaps. The dual spinning mops rotate at 180 RPM with up to 8N downward force in advanced mopping mode, handling dried stains and sticky residue on hard floors.

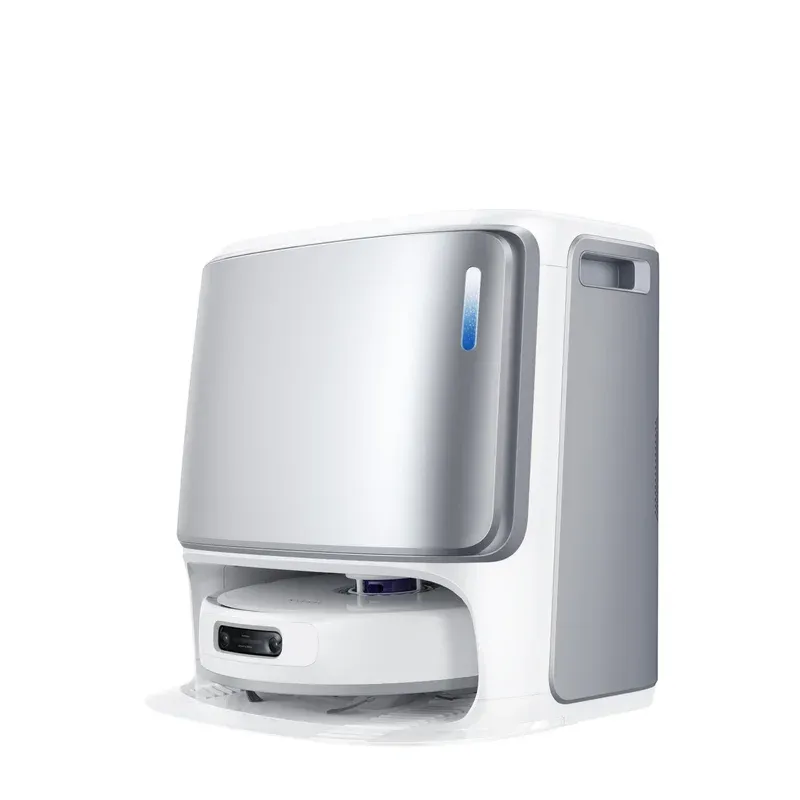

The tangle-free main brush prevents hair from wrapping around the roller, reducing the maintenance headache common with traditional robot vacuums. Carpet detection automatically lifts the mop pads to prevent water damage when transitioning from hard floors to rugs. The 480ml onboard dustbin handles debris during cleaning runs, while the dock stores waste in a 2.5L disposable bag rated for months of accumulated dust.

Technical Specifications

Core hardware delivers competitive cleaning performance:

• Suction power: 12,000Pa with automatic carpet boost
• Battery: 5,000mAh at 14.4V, up to 210 minutes runtime
• Dustbin: 480ml onboard, 2.5L disposable bag in dock
• Mopping: dual pads at 180 RPM, 1.2kg standard force, up to 8N advanced mode
• Navigation: dual 1600x1200 RGB cameras, LiDAR 4.0, 120+ object recognition

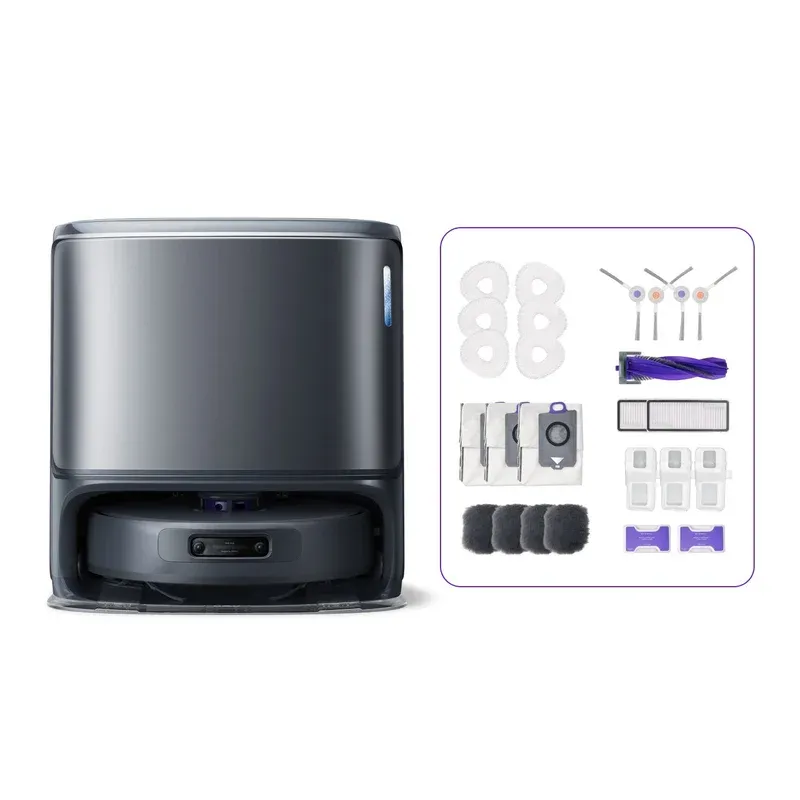

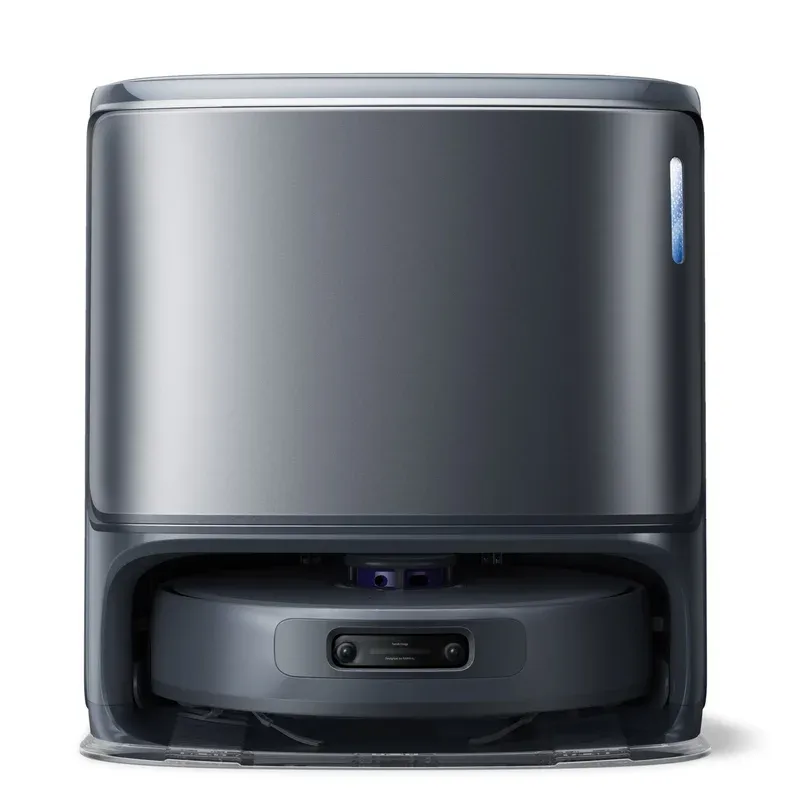

• Dock: hot water mop wash, auto-dry, 580ml detergent tank, 120-day dust storage
• Dock dimensions: 430.8 x 462 x 388.3mm, weight 12.3kg
• Noise: 41.6dB ambient, up to 68.2dB during self-emptying
• Power: 120V 60Hz, 20V-2.0A adapter

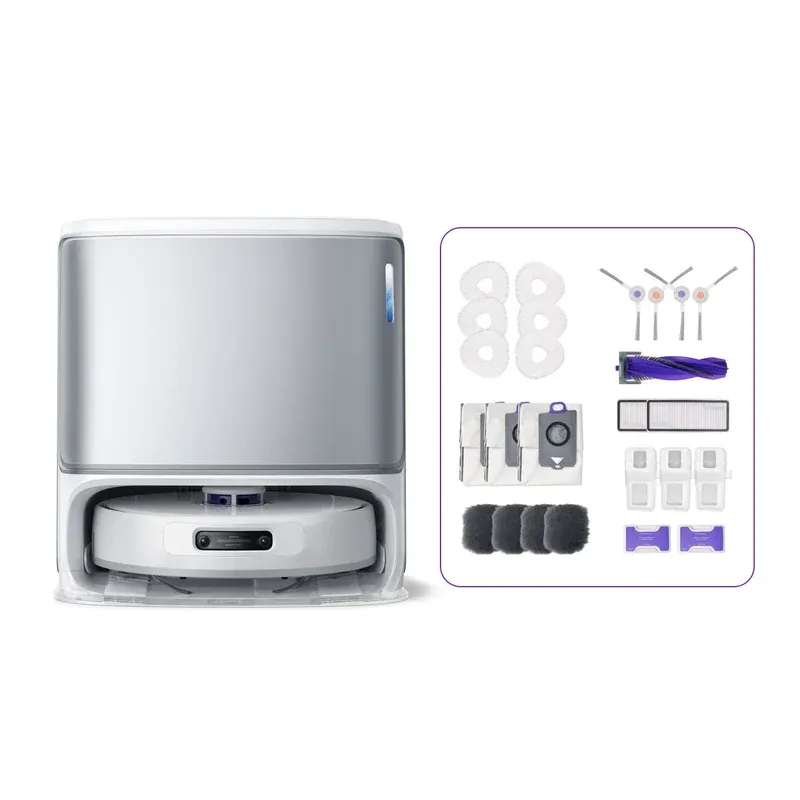

The machine learning obstacle recognition processes camera feeds in real time to classify objects and choose the optimal avoidance path. Multi-level mapping stores separate floor plans for homes with multiple stories.

Connectivity and Smart Home Integration

The Freo Z Ultra connects over 2.4GHz Wi-Fi through the Narwal app. The app provides custom room mapping, no-go zones, scheduled cleaning, weather-adaptive mopping settings, and child lock functionality. Real-time progress tracking shows the robot position and cleaned area during operation.

Voice control works with Alexa, Google Home, and Siri for basic commands like starting, pausing, or sending the robot to specific rooms. The Freo Z Ultra integrates with Home Assistant for advanced automation scenarios, such as triggering cleaning when motion sensors detect you have left home. No separate hub is required since the robot connects directly to your Wi-Fi network and cloud services.

Real-World Use Cases

The Freo Z Ultra handles common household cleaning challenges:

• Pet owners benefit from the tangle-free brush and pet waste avoidance that prevents the robot from spreading messes across the floor
• Families with young children get the EdgeSwing edge cleaning that reaches along baseboards where crumbs and debris accumulate
• Homes with mixed flooring use automatic mop lifting on carpets combined with 12,000Pa suction for deep carpet cleaning
• Allergy-sensitive households gain from the self-cleaning dock that washes mops with hot water and maintains hygienic conditions automatically
• Large floor plans take advantage of the 210-minute battery life that covers most homes in a single charge

The AI DirtSense 2.0 system identifies high-traffic areas and increases cleaning intensity automatically. In quiet mode at 41.6dB, the robot runs during nap time or night hours without disturbing sleep.

Setup and Getting Started

Place the dock near a power outlet with at least 1.5 feet of clearance on each side. Download the Narwal app, connect to your 2.4GHz Wi-Fi network, and run the initial mapping scan, which takes approximately 6 minutes for a standard home layout.

Fill the 580ml detergent tank, insert a dust bag, and attach the mop pads. The app walks through each step with visual guides. After the initial map is built, customize room labels, no-go zones, and cleaning schedules. Over-the-air firmware updates keep the machine learning features current as Narwal releases improvements.

Final Thoughts

The Narwal Freo Z Ultra delivers strong value as a combined vacuum and mop with the EdgeSwing edge cleaning that genuinely reaches areas other robots miss. The 12,000Pa suction handles everyday debris effectively, though it sits below the 22,000Pa class offered by Roborock and Dreame flagships. Where the Freo Z Ultra wins is the comprehensive dock that handles 120 days of maintenance and the weather-adaptive mopping that adjusts water usage based on humidity.

For homes that prioritize mopping quality and edge coverage over raw suction power, the Freo Z Ultra is a practical choice in the 2026 robot vacuum market. The tangle-free brush design and quiet operation add to its appeal for pet owners and noise-sensitive households.
