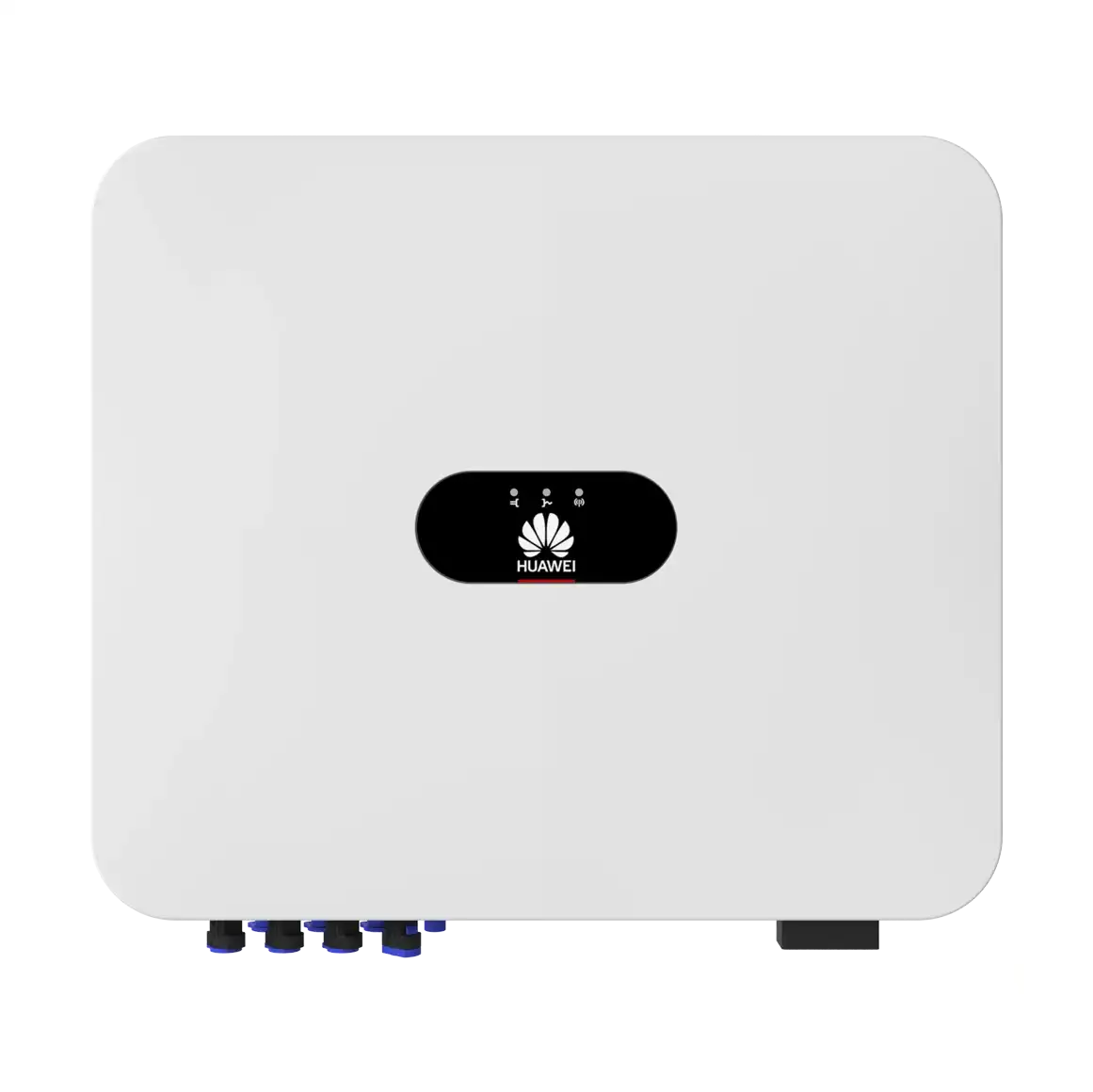

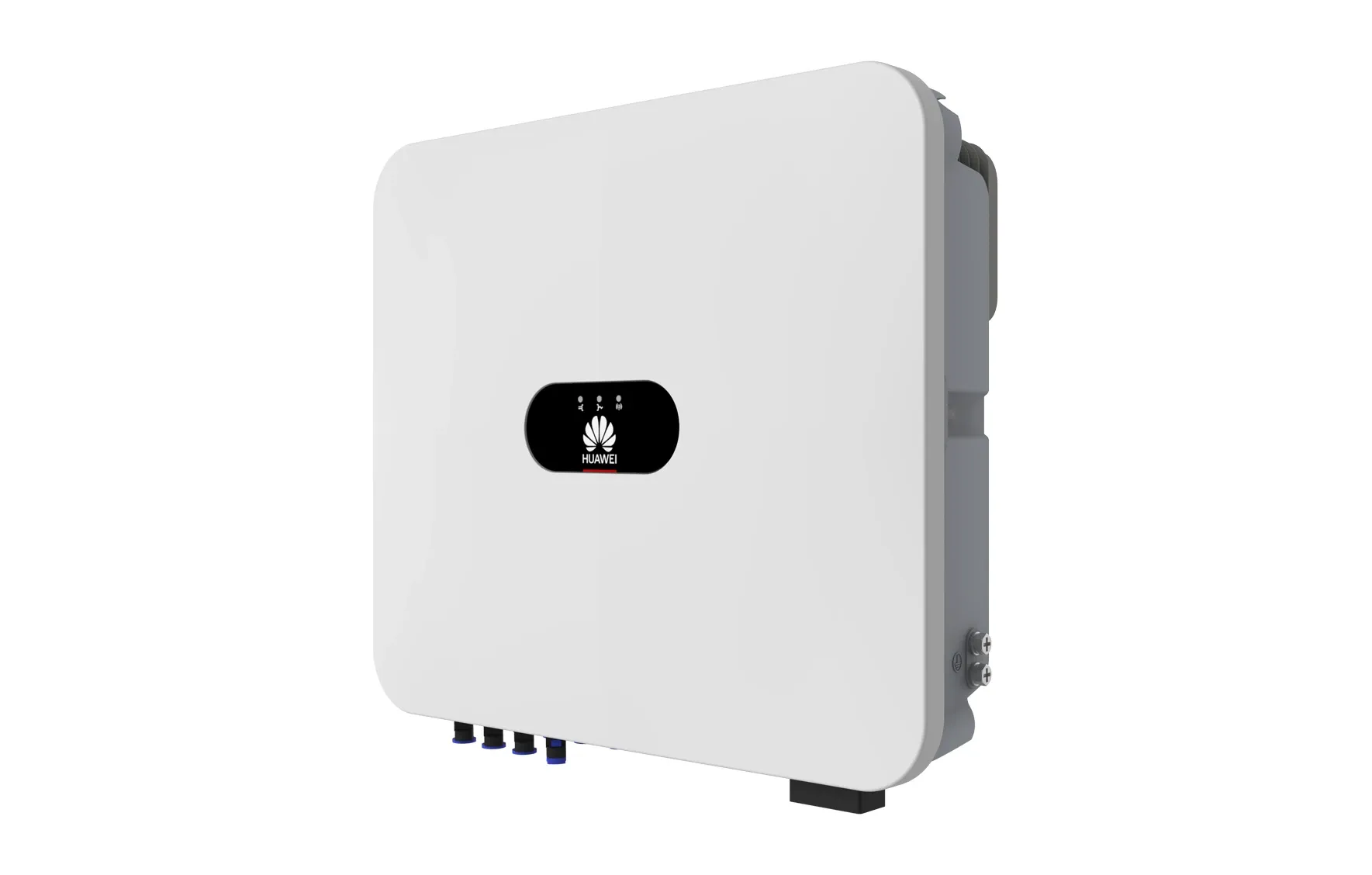

Huawei Smart Energy Controller SUN2000-8 Single-Phase Residential Inverter

The Huawei Smart Energy Controller SUN2000-8 is an advanced single-phase residential inverter designed to optimize your solar energy system with high efficiency and intelligent features. Delivering 8,000W of power, this smart energy controller combines flexibility, reliability, and seamless integration with Huawei’s modular LUNA2000 battery system, making it a perfect fit for modern smart homes.

Advanced Technology for Efficient Energy Management

High-efficiency power conversion

The Huawei SUN2000-8 stands out with its great energy saving capabilities. Featuring 3 Maximum Power Point Trackers (MPPTs), it maximizes solar power harvesting by optimizing each solar panel string independently, even under varying sunlight conditions. This leads to higher overall system output, improving your home's energy efficiency.

This model achieves an impressive maximum efficiency of 98.1% and a European weighted efficiency of 97.5%, ensuring that the majority of the solar energy generated is converted effectively for use or grid feed-in. Its startup voltage is only 50 V, allowing earlier activation during low light periods, enhancing daily energy yields.

PV design and MPPT specifics

Extended specs: recommended max PV power 12,000 Wp; 600 V max input voltage; 40–560 V MPPT operating range; 3× MPPT / 3 inputs; 16 A max input current per MPPT (with 20 A max short-circuit current). These figures make string design flexible and future-proof for residential rooftops.

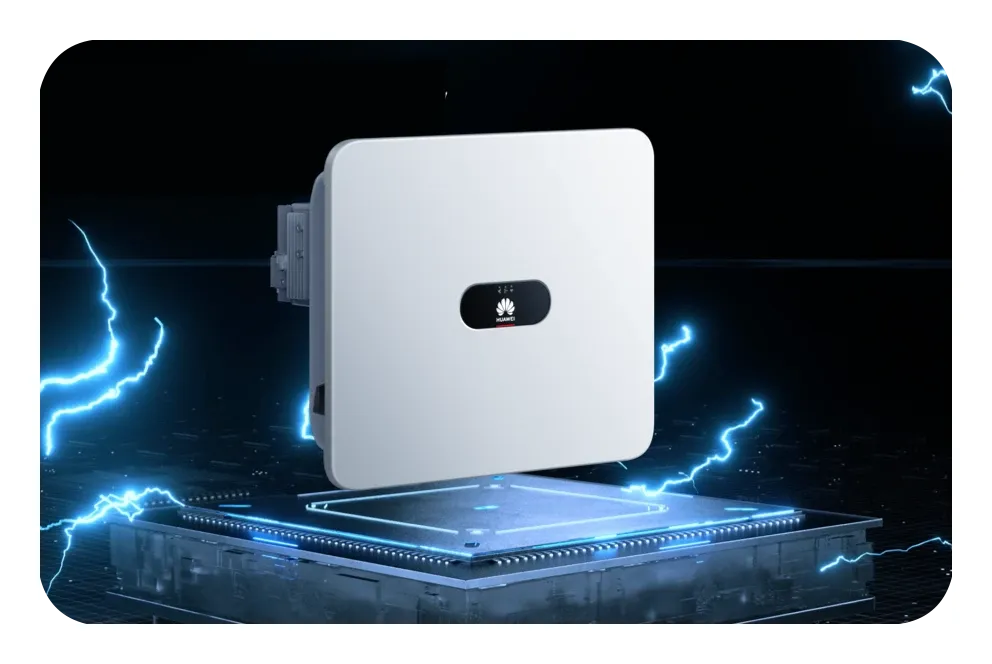

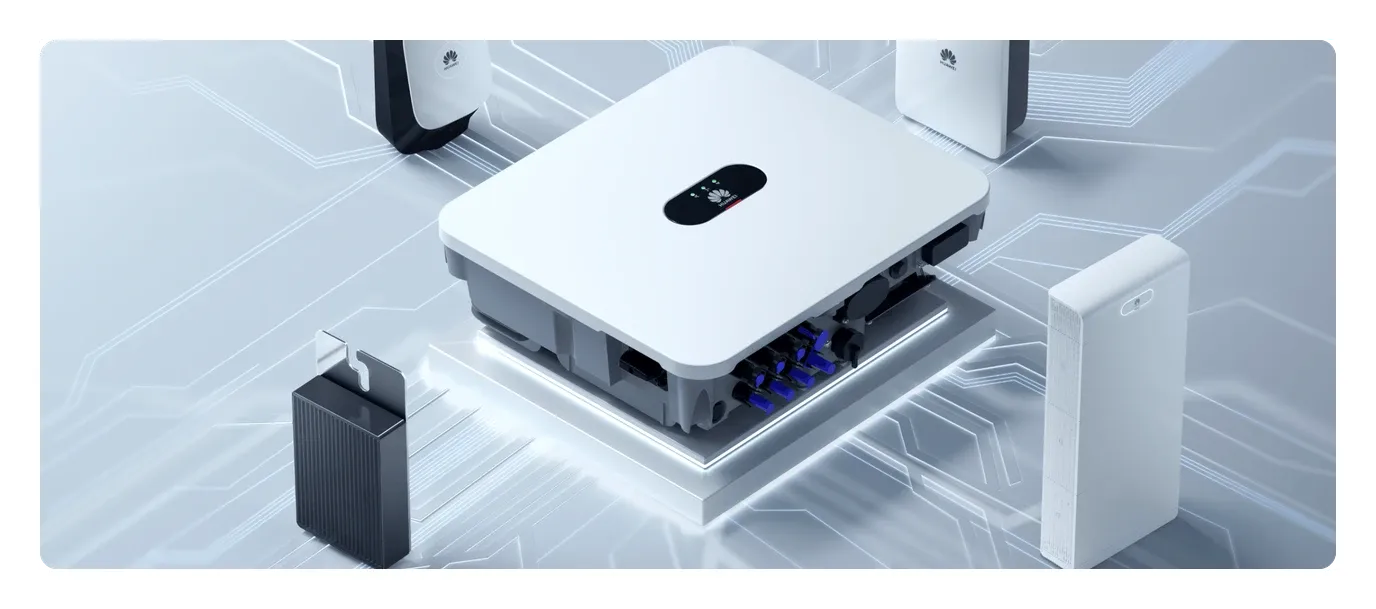

Seamless Integration with Modular Battery Storage

LUNA2000 compatibility & capacity

A significant advantage of the Huawei Smart Energy Controller SUN2000-8 is its compatibility with the LUNA2000 modular battery system, which supports capacities of 5, 10, or 15 kWh (S0) and 7, 14, or 21 kWh (S1). The inverter can deliver up to 8,000 W of charging and discharging power, allowing your smart home to enjoy reliable energy storage and backup. Battery operating voltage spans 350–560 V DC with up to 25 A operating current, and grid charging is supported for off-peak optimization or storm pre-charge strategies.

Charging strategies and autonomy

This capacity supports higher climate control efficiency by storing excess solar energy during the day and providing power during nighttime or grid outages, reducing your dependence on external power sources and increasing self-consumption rates.

Reliable Safety and Durability Features

Protections and certifications

Safety is a crucial aspect of any solar inverter, and the SUN2000-8 includes multiple protections such as integrated AC and DC overvoltage protection (Type II), ensuring the system's integrity in fluctuating electrical conditions. It also comes with a 10-year warranty, underscoring Huawei’s confidence in the product’s long-term reliability.

All-weather design and warranty

The inverter is built to endure a wide temperature range from -25°C to +60°C and humidity from 0% to 100%, making it suitable for diverse climates and operating conditions. Its IP66 protection rating prevents dust and water ingress, ensuring durability in outdoor installations. Additional safeguards include anti-islanding, DC reverse-polarity protection, insulation monitoring, residual current monitoring, AC overcurrent/short-circuit/overvoltage protection, over-temperature protection, and AFCI protection.

Intelligent Connectivity and Easy Monitoring

Communications and app monitoring

Equipped with communication options such as integrated WLAN, RS485, and optional Smart Dongle-WLAN-FE (WLAN/Ethernet) or Smart Dongle-4G modules, the Huawei Smart Energy Controller SUN2000-8 enables remote monitoring and control via Huawei’s FusionSolar platform. LED indicators aid quick on-site checks. This home automation feature allows users to monitor system performance in real time, track energy generation, and diagnose potential issues promptly, bringing true convenience to homeowners.

Why Choose the Huawei Smart Energy Controller SUN2000-8?

Top benefits at a glance

• 8,000 watts rated output power for single-phase residential solar
• 8,800 VA max apparent power and 40.0 A max output current
• Three MPPTs for enhanced solar panel optimization
• Compatibility with LUNA2000 battery storage for smart energy management (350–560 V DC, up to 25 A)
• High max efficiency 98.1% and 50 V startup for early generation
• Robust safety features including SPD Type II (AC/DC) and AFCI
• IP66 waterproof/dustproof casing for outdoor durability
• Backup power supported via SmartGuard-63A-S0
• Support for smart system monitoring through the FusionSolar app
• Power quality: PF adjustable 0.8 leading to 0.8 lagging, THD ≤ 3%, 220/230/240 V, 50/60 Hz

Installation and Compatibility Details

PV sizing and site conditions

The Huawei Smart Energy Controller SUN2000-8 supports a recommended maximum photovoltaic (PV) input power of 12,000 Wp and a maximum input voltage of 600 V. Its operating MPPT voltage ranges from 40 V to 560 V, with a rated input voltage around 360 V. Each MPPT can handle up to 16 A input current, allowing flexible PV string configurations.

Cooling, mechanics and optimizer support

For site conditions, the inverter operates from -25 °C to +60 °C, at 0–100% RH, and up to 4,000 m altitude (with output derating above 2,000 m). Cooling is natural convection with Smart Air Cooling design for low noise and minimal maintenance. Mechanicals match the header: 14.5 kg weight and 425 × 376.5 × 150 mm (including the mounting plate). The unit is also compatible with Huawei optimizers SUN2000-450W-P2 and SUN2000-600W-P when per-module enhancement or shade mitigation is required.

Thanks to its modular design, it is also easy to integrate into existing smart home setups, improving your home's climate control and energy automation.

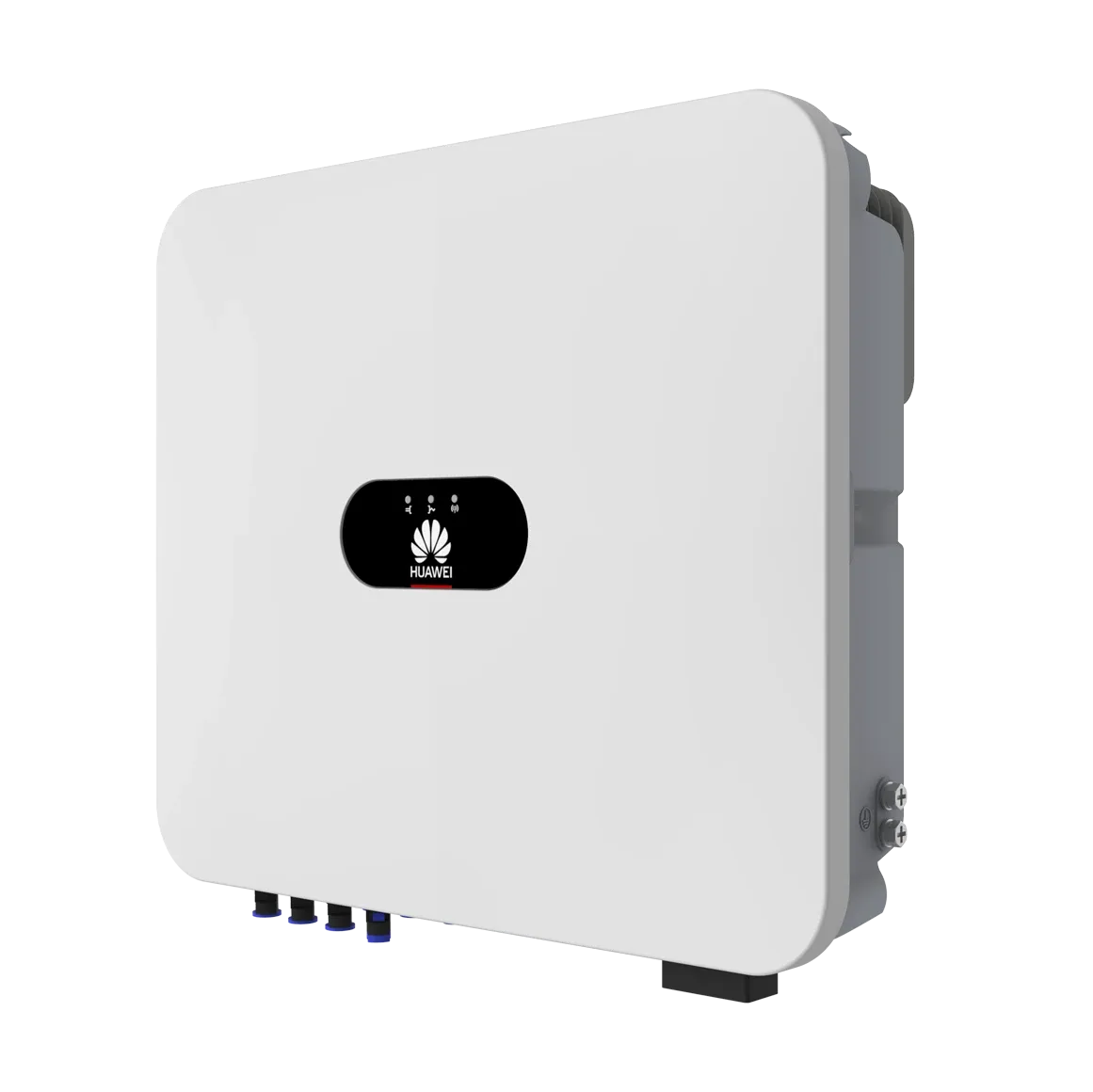

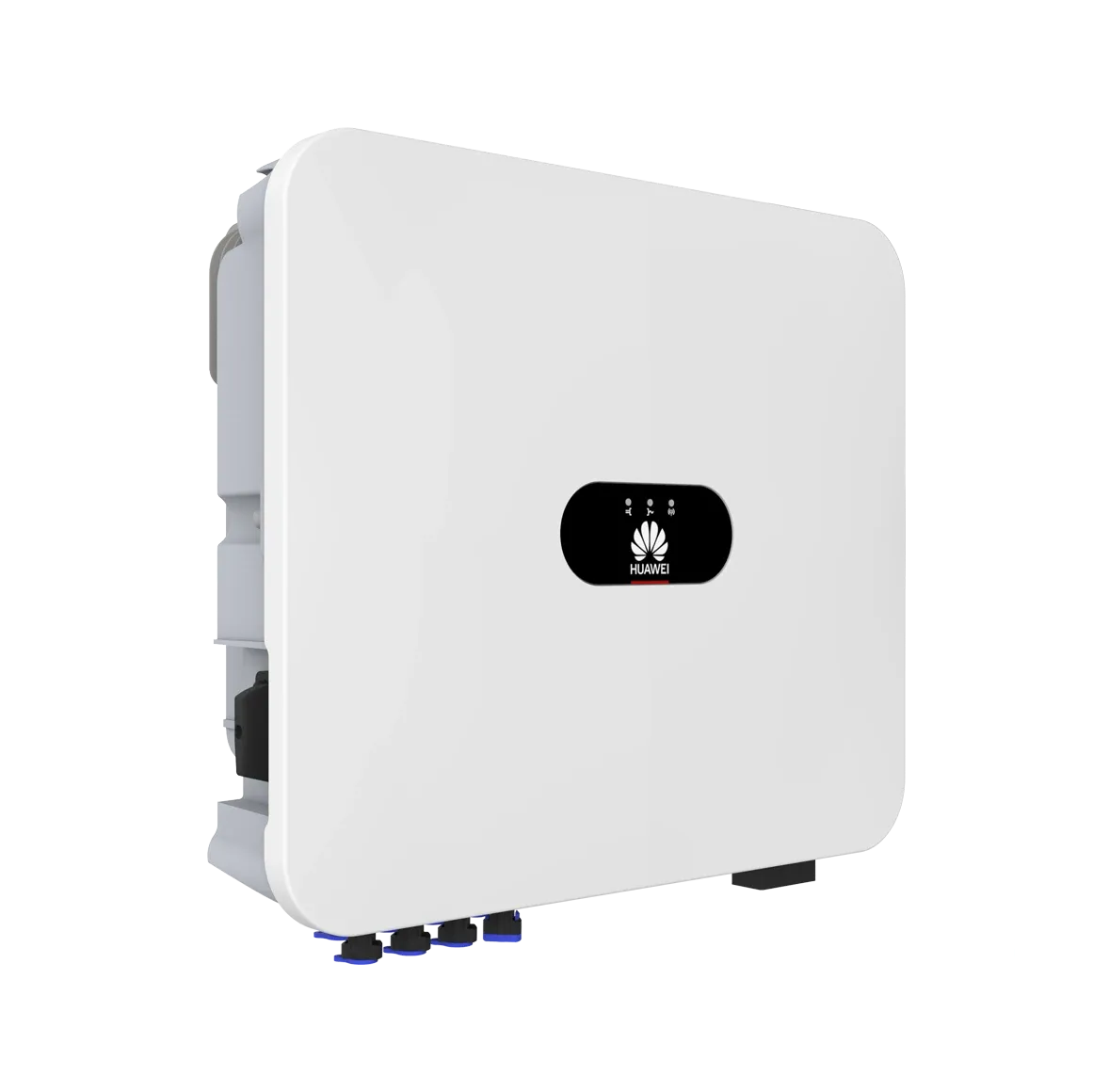

Specs at a Glance

Electrical, interfaces & mechanics

• PV input: 12,000 Wp recommended max; 600 V max; 50 V startup; 40–560 V MPPT; 3× MPPT / 3 inputs; 16 A per MPPT; 20 A Isc
• Battery: LUNA2000-5/10/15-S0; LUNA2000-7/14/21-S1; 350–560 V DC; 25 A; 8,000 W charge/discharge; grid charging supported
• AC output: 8,000 W rated; 8,800 VA max; 40.0 A max current; 220/230/240 V; 50/60 Hz; PF 0.8 lead…0.8 lag; THD ≤ 3%
• Backup: Supported via SmartGuard-63A-S0
• Protection: IP66; SPD Type II (AC/DC); AFCI; residual current; insulation monitoring; anti-islanding; thermal; over/short/over-voltage/current
• Comms & monitoring: Integrated WLAN + FusionSolar app; RS485; optional Smart Dongle-WLAN-FE or Smart Dongle-4G
• Mechanical: 14.5 kg; 425 × 376.5 × 150 mm (incl. plate)

Conclusion

Final take for smart homes

Owners choosing the Huawei Smart Energy Controller SUN2000-8K-LC0 gain these advantages in a compact, efficient package. As a Huawei Smart Energy Controller SUN2000-8 Single-Phase Residential Inverter, it aligns perfectly with single-phase homes and modern automation needs.

The Huawei Smart Energy Controller SUN2000-8 is an exceptional choice for anyone looking to install or upgrade a solar power system in their smart home. By combining powerful features, strong safety protocols, and smart connectivity, it offers an ideal solution to maximize energy harvest and storage.

Enhance your home's energy efficiency and autonomy with a controller designed to optimize solar power and integrate seamlessly with Huawei’s innovative battery modules. This smart energy controller is a smart investment for a sustainable, green energy future.

This product bridges advanced solar technology and smart home automation, effectively turning your home into a more energy-conscious and self-reliant environment.
